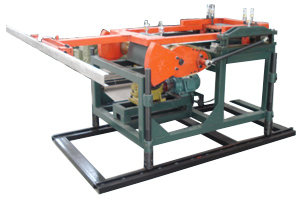

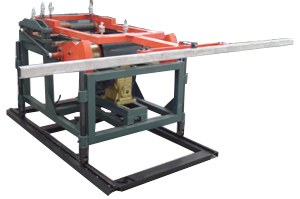

Model QB Stacker

It is used for pushing the glassware from the cross conveyor into the annealing lehr. There are two types: linear type and curve type.
Pushing speed is regulated by an inverter.Digital counters are mounted for control of bottle number per pushing.

Pushing Stroke: 350mm
Length of Push-Bar: subject to annealing lehr width
Push-Bar Height above Floor: 900～1150mm
Pushing Speed: 1～20times/min
